Customise areas and view floor plan statistics

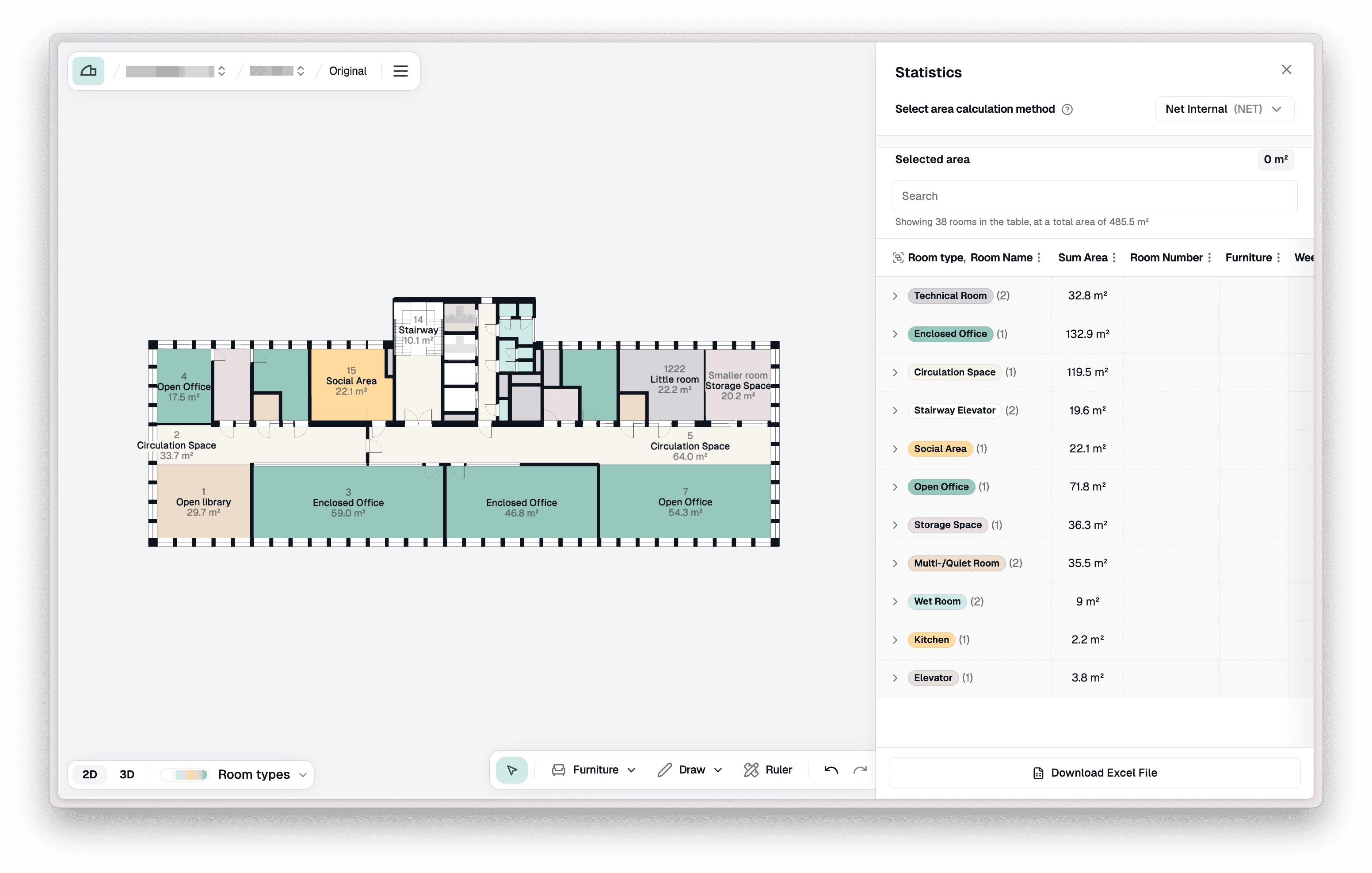

Example of the statistics panel on a floor plan

Steps

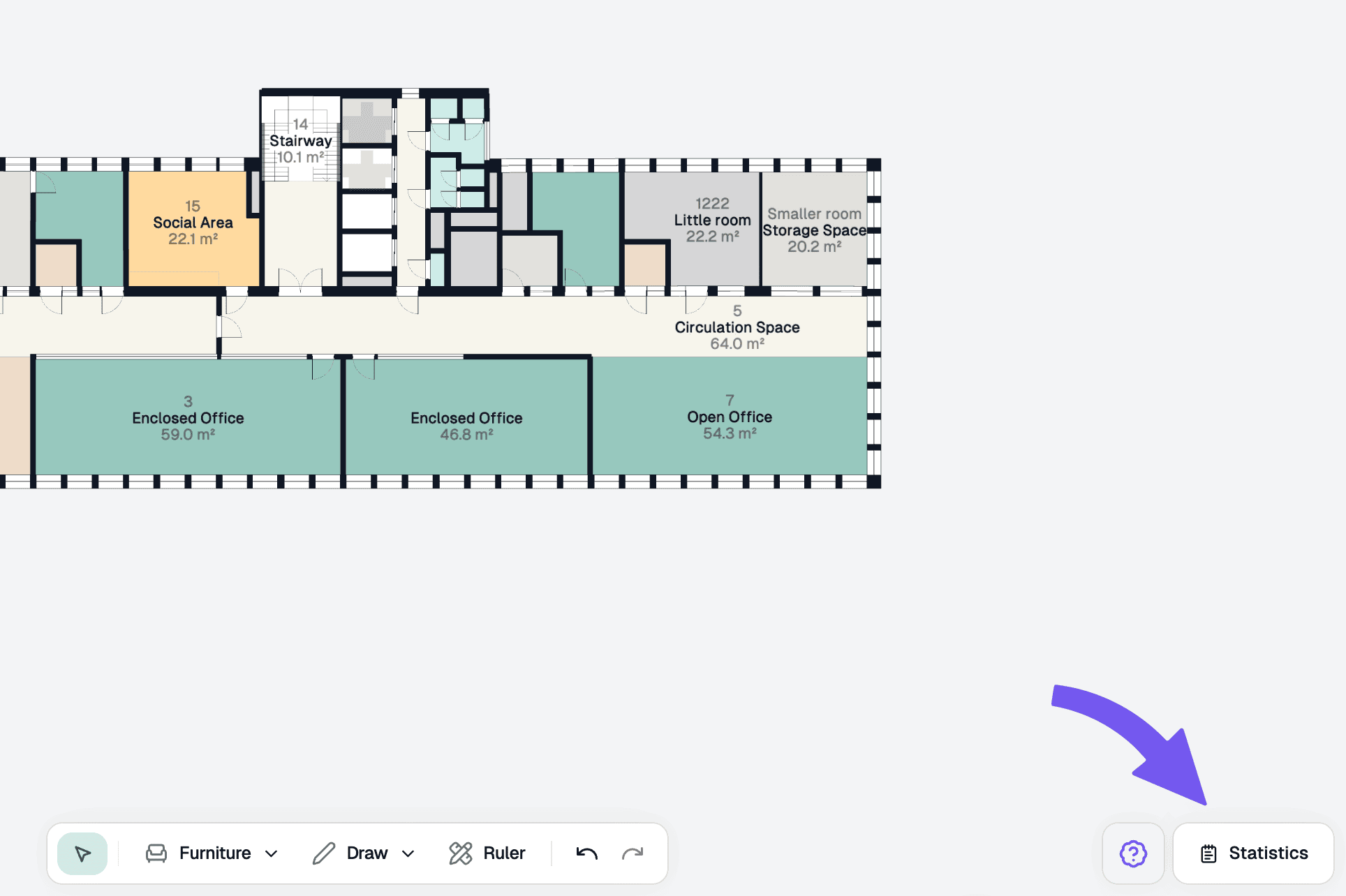

Open statistics panel

In the left sidebar, open the "Statistics" tab.

Step 1

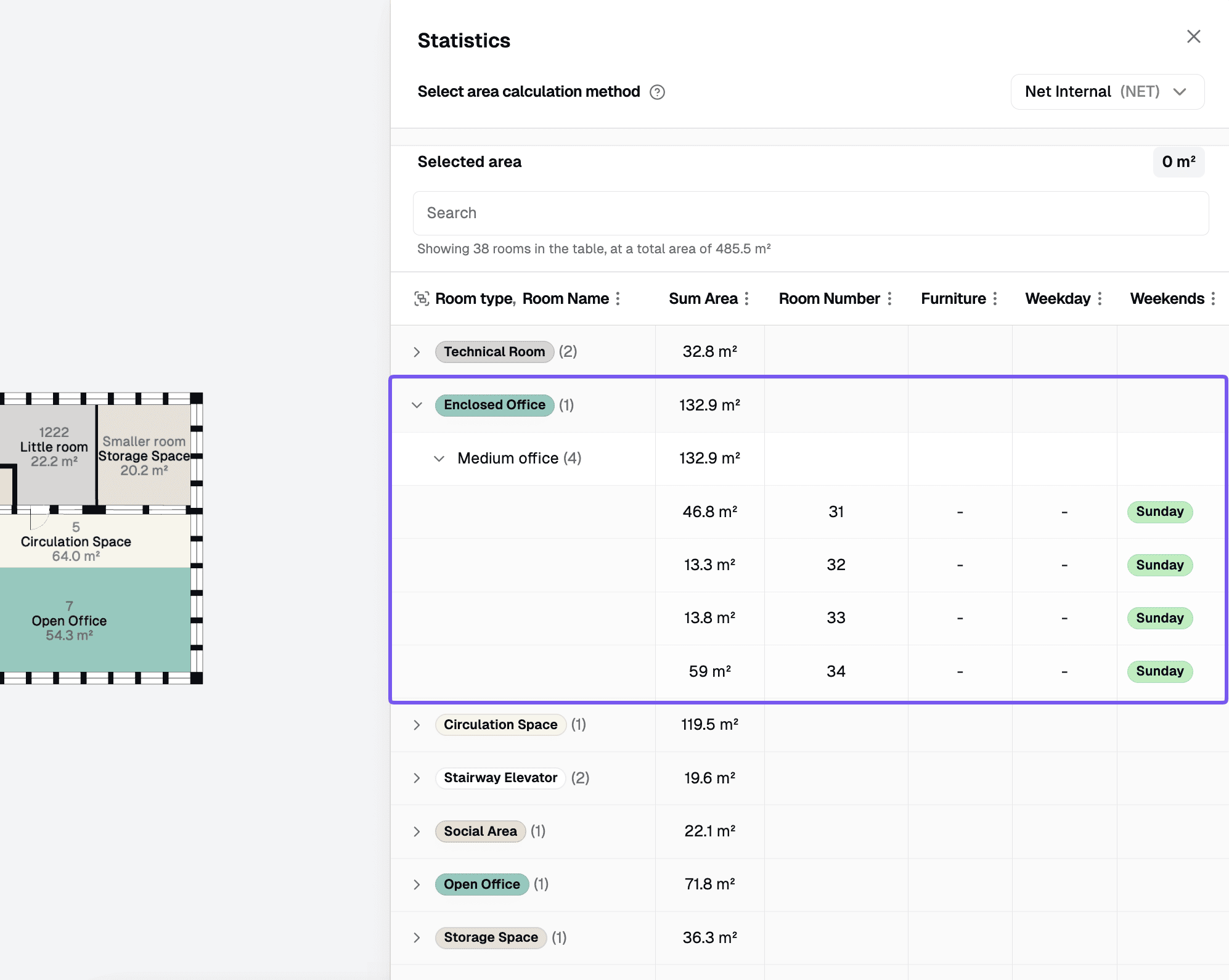

Statistics overview

The statistics panel organises rooms by room type and displays the number of rooms and total area for each type.

Step 2

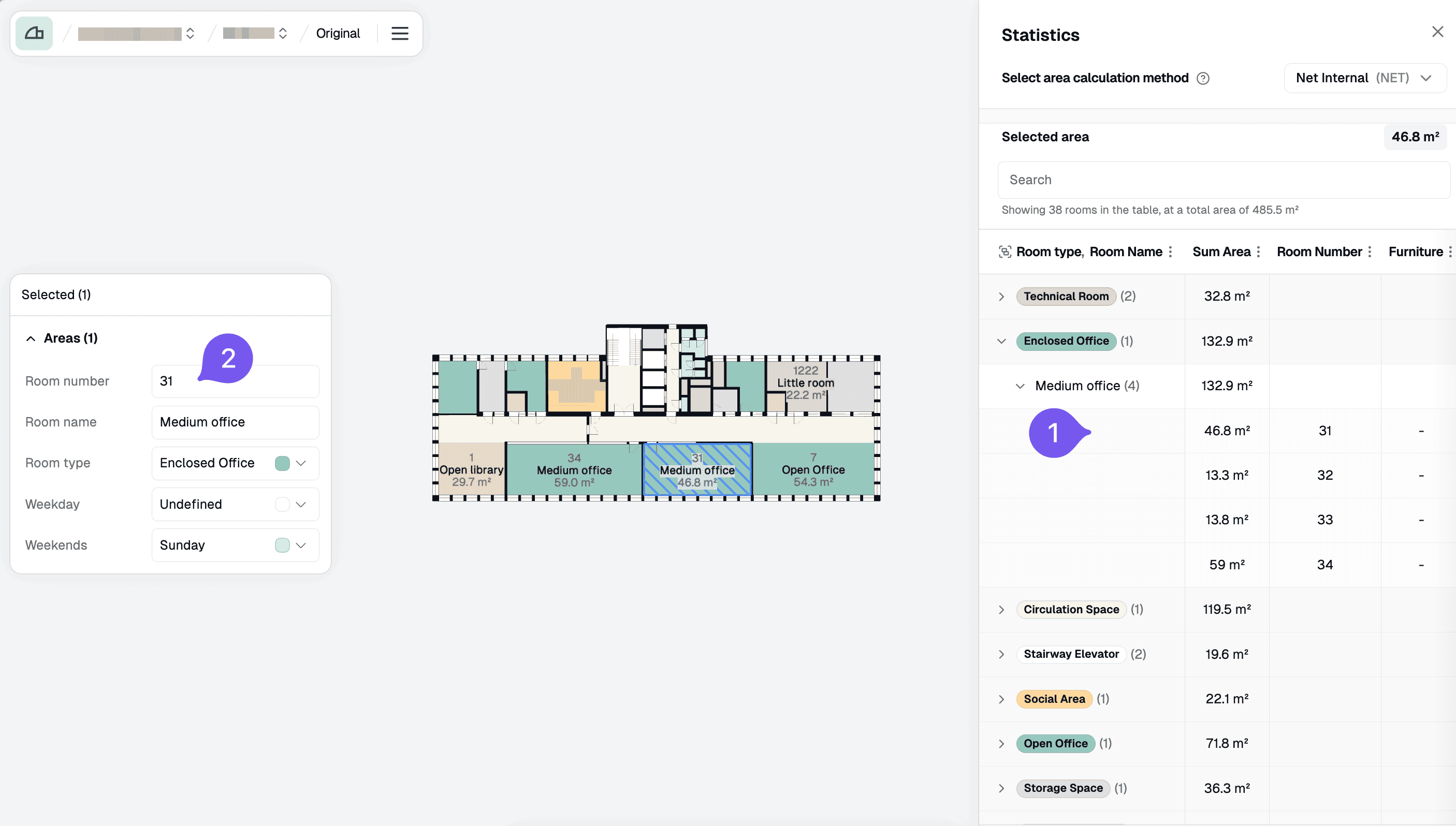

Inspect areas

Select an area type or a specific area by clicking on a row in the statistics panel. This will open up the properties panel for your selection.

Step 3

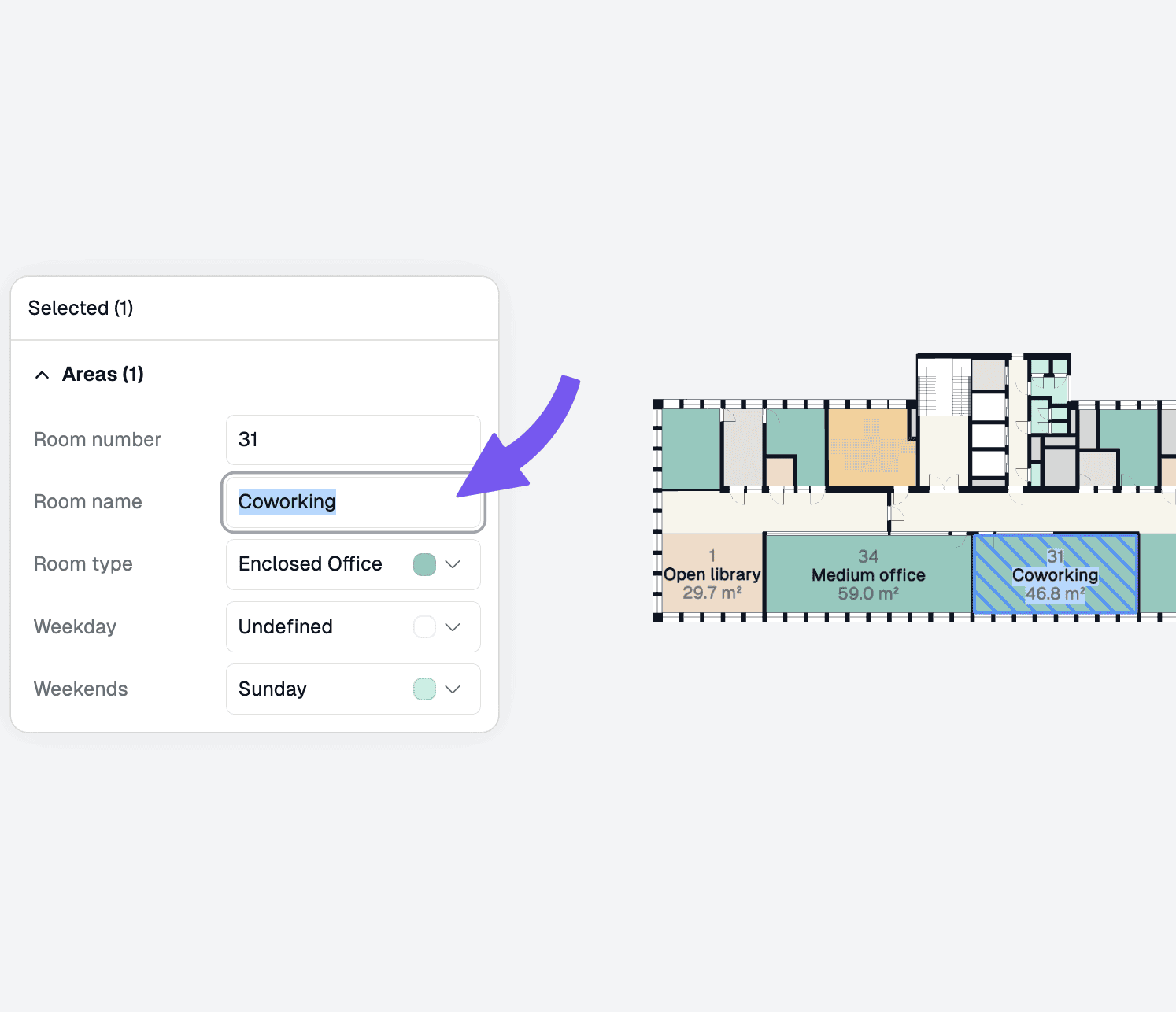

Change properties

Edit the room type, name, area type, and more. Your changes will be saved automatically.

Step 4

Schemes

Manage cleaning profiles for floor plan areas

Furniture count

View furniture counts by room type from the statistics panel in Studio
